Houston Commercial Gate Automation
Commercial Automatic Gates Built Around the Operator That Powers Them
The gate is the part you see. The operator behind it — the motor, the brain, and the safety system — is the part that decides whether your entrance still opens on the busiest morning three years from now. That is where we start.
A commercial automatic gate is really two purchases in one: the gate you can point at, and the operator you cannot. The operator cycles that gate open and closed hundreds of times a day, holds it against Houston wind and weather, and stops it before it ever touches a vehicle or a person. Spec the operator wrong and even a beautifully built gate turns into a stuck, propped-open liability. Mustang Fencing & Gates has automated commercial and industrial entrances across Greater Houston — and we spec the operator first: your real traffic, your power, and your safety devices, before anyone talks about the gate frame. (The gate structure itself lives on our commercial gate installation page; keypads and readers on commercial access control.)
What Makes a Commercial Automatic Gate Actually Reliable
Reliability is not luck — it is a short list of things done right at install. Every operator we set is commissioned against this list, because an automated gate is a powered machine working next to cars and people, and that makes safety a matter of liability, not a nice-to-have.
- An operator sized to your real cycle count The number-one cause of premature failure is a light-duty motor put on a gate that cycles far more than it was rated for. We size to how hard your gate actually works — not the brochure number.
- In-pavement loop detection (UL 325) Inductive loops sense a vehicle in the opening so the gate opens on exit and never closes on a car sitting in the path.
- Through-beam photo-eyes Infrared beams across the opening reverse or hold the gate the instant the path is blocked — protecting vehicles and anyone on foot.
- A reversing edge for entrapment protection A contact edge on the leading edge of the gate triggers an immediate reversal on contact — the last line of defense UL 325 requires on many commercial installs.
- Backup power that fits your risk Battery or solar backup sized to your cycle count keeps the gate moving through a Houston storm or grid drop, set fail-safe or fail-secure to match your security posture.
- Force settings & signage, documented We tune the operator’s force limits, post UL 325 warning placards, and hand you the commissioning record for your insurance and compliance file.
Choosing the Right Operator for Your Entrance
There is no single “best” operator — the right one depends on your gate weight, your traffic, and how your site is powered. These are the four drive families we install and standardize on across Houston and the surrounding suburbs.
Cantilever Slide Operators
Built for wide entrances, uneven grade, and heavy truck traffic. Rack-driven slide operators handle long, heavy leaves and continuous cycling — the workhorse for industrial yards, distribution docks, and laydown sites.
Swing Gate Operators
The right call for office parks, retail, and multifamily frontages where a slide is not practical. Single or dual-leaf arms open smoothly and quietly on a footprint that has room to swing.
Barrier Arms
For parking structures and throughput lanes where speed matters more than a full perimeter gate. High-cycle arms keep tenant and visitor traffic moving without slowing the line.
Solar & Off-Grid Operators
Where trenching AC power is cost-prohibitive — remote yards, back lots, phased or temporary sites — solar arrays with sealed battery banks run DC operators at your real cycle count, right through Houston’s cloudy stretches.
Operator Types, Side by Side
This matrix maps each drive style to the sites where it earns its keep, so you are not paying for a heavy continuous-duty slide operator where a solar swing operator does the job. Investment tiers are relative — an estimate to help you budget, never a fixed quote.
| Operator Type | Best Site | Traffic Fit | Power Options | Relative Investment |
|---|---|---|---|---|
| Cantilever Slide | Wide industrial & yard entrances, uneven grade | High to continuous | AC or solar / battery | $$$ |
| Swing (single or dual) | Office parks, retail, multifamily frontages | Low to medium | AC or solar / battery | $$ |
| Barrier Arm | Parking decks, controlled throughput lanes | High cycle | AC, battery backup | $$ |
| Vertical Pivot / Lift | Tight footprints with no room to slide | Medium to high | AC or solar / battery | $$$ |
| Solar / Off-Grid | Remote yards, back lots, phased sites | Sized to array | Solar + sealed battery | $$ |
Not sure which operator your site needs? We walk the entrance, confirm your real cycle count, and spec it for you — free.
How Hard Will Your Gate Actually Work?
Duty cycle — how many times a day the gate opens and closes — is the single biggest factor in which operator will still be running years from now. The bars below show the load bands we size to. These describe workload, not price; we spec to your real throughput, not the catalog headline.
From Site Walk to First Open
An automated entrance is only as good as the sequence behind it. Every Mustang operator project moves through the same five gates — and nothing skips ahead.
- Walk the entrance, count the cycles. We measure the opening, check grade and available power, and pin down your real daily throughput — the number the whole spec hangs on.
- Written bid, line by line. Operator model, safety devices, backup power, and timeline in writing, so you can hold any competing quote against it.
- Fabrication to the operator spec. Gate leaf, posts, and mounting hardware are built in our shop to match the drive system — not the other way around.
- Install and commissioning. We set the operator, saw-cut the loops, wire the photo-eyes and reversing edge, tune the force limits, and cycle-test the full system.
- Walkthrough and handoff. You get the live demo, the controls, and the documented UL 325 commissioning record for your compliance file.

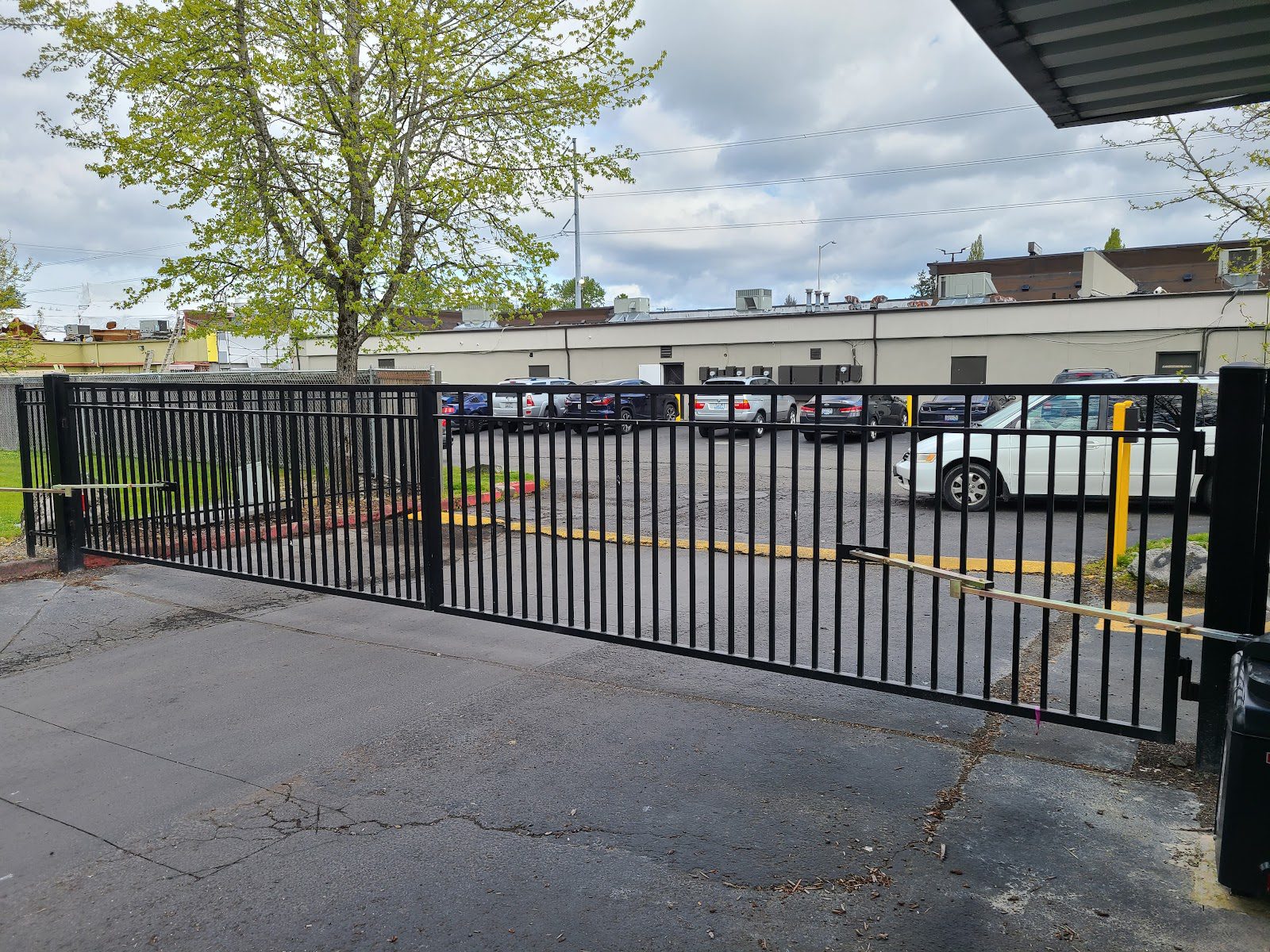

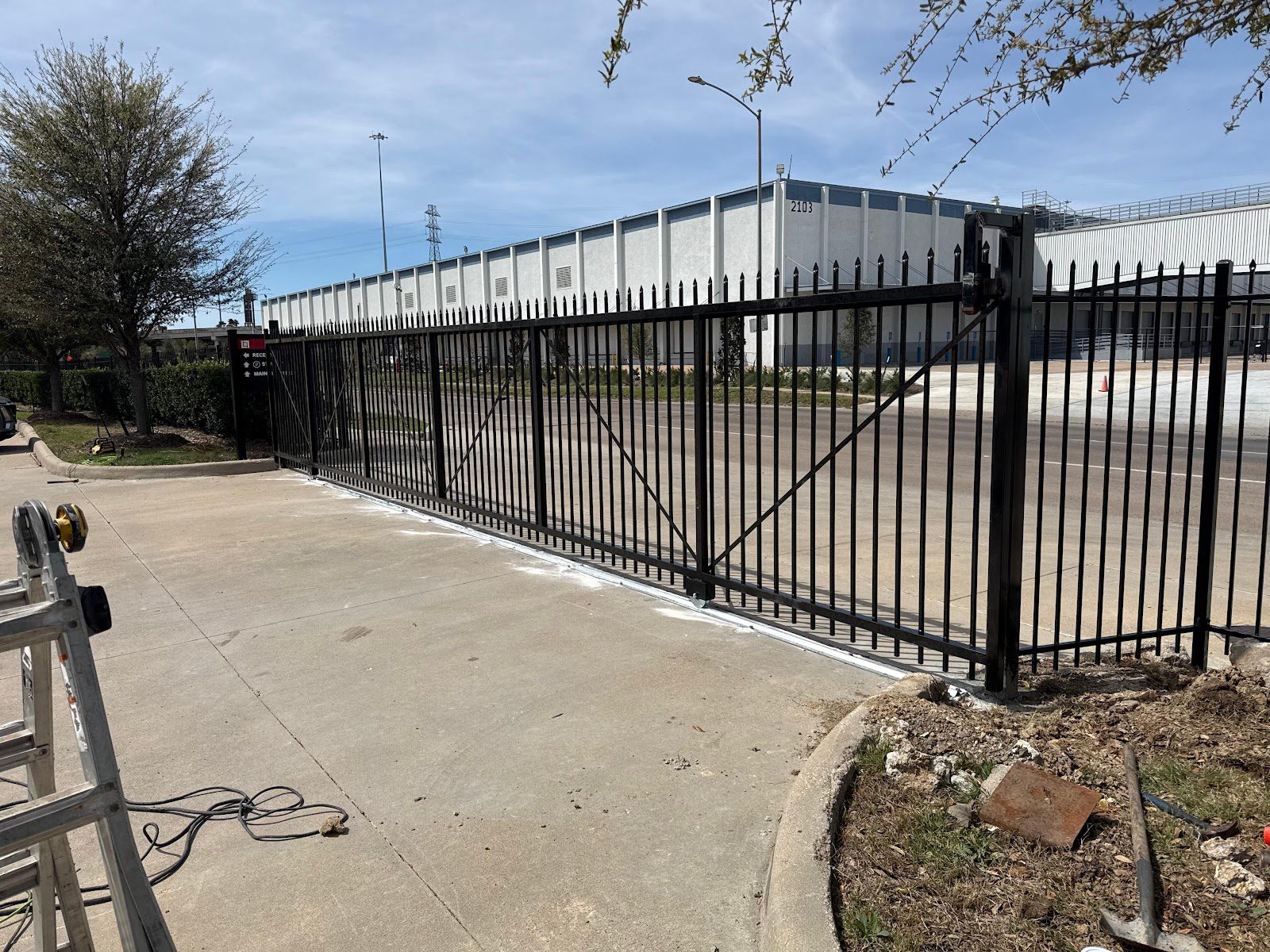

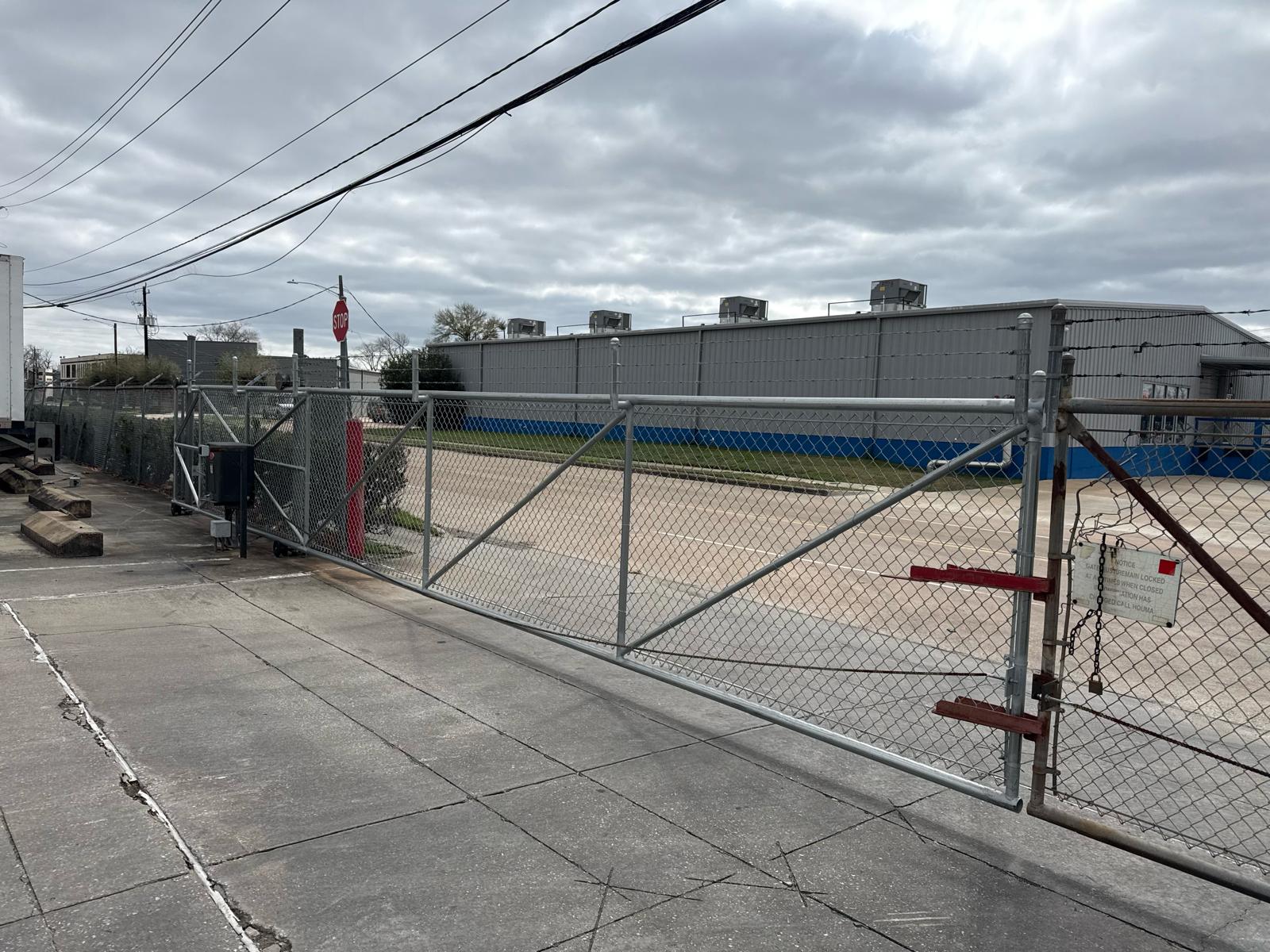

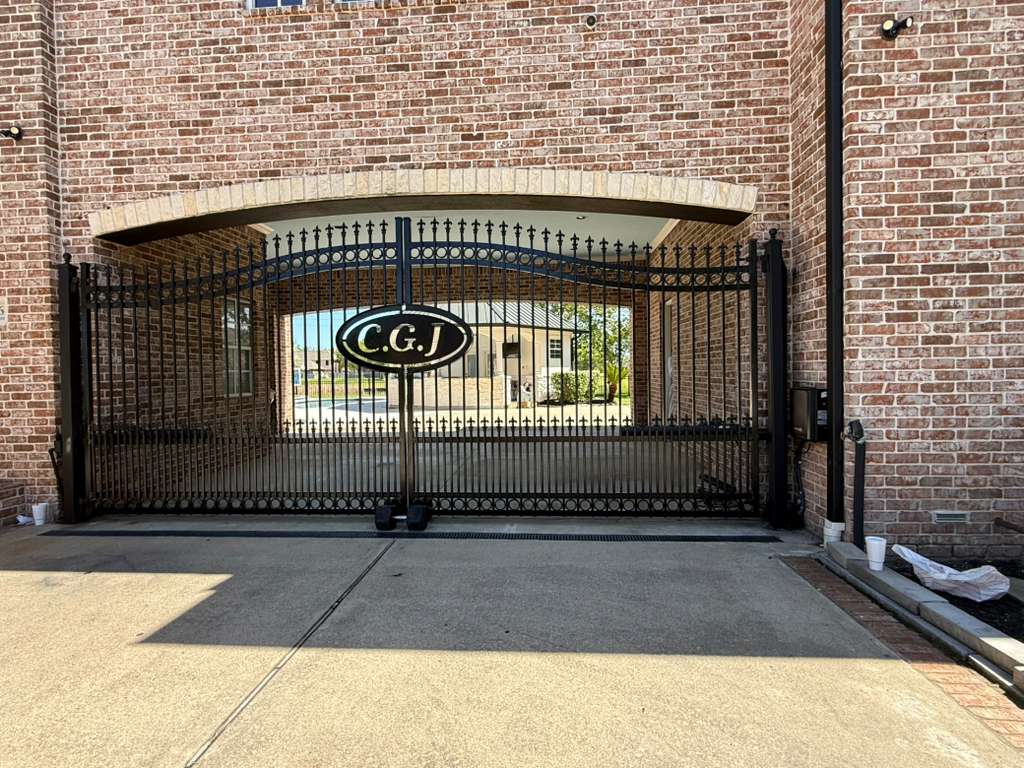

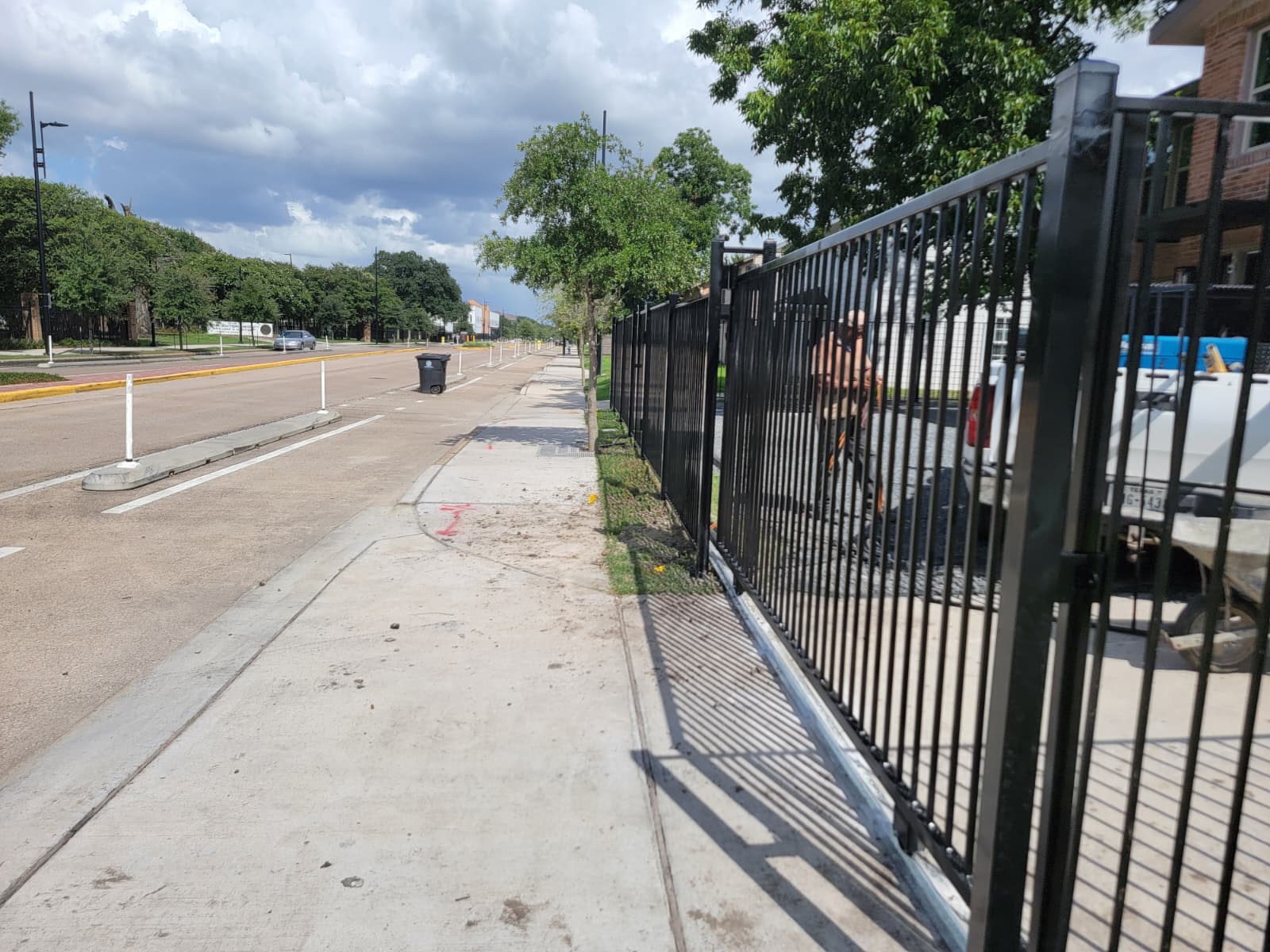

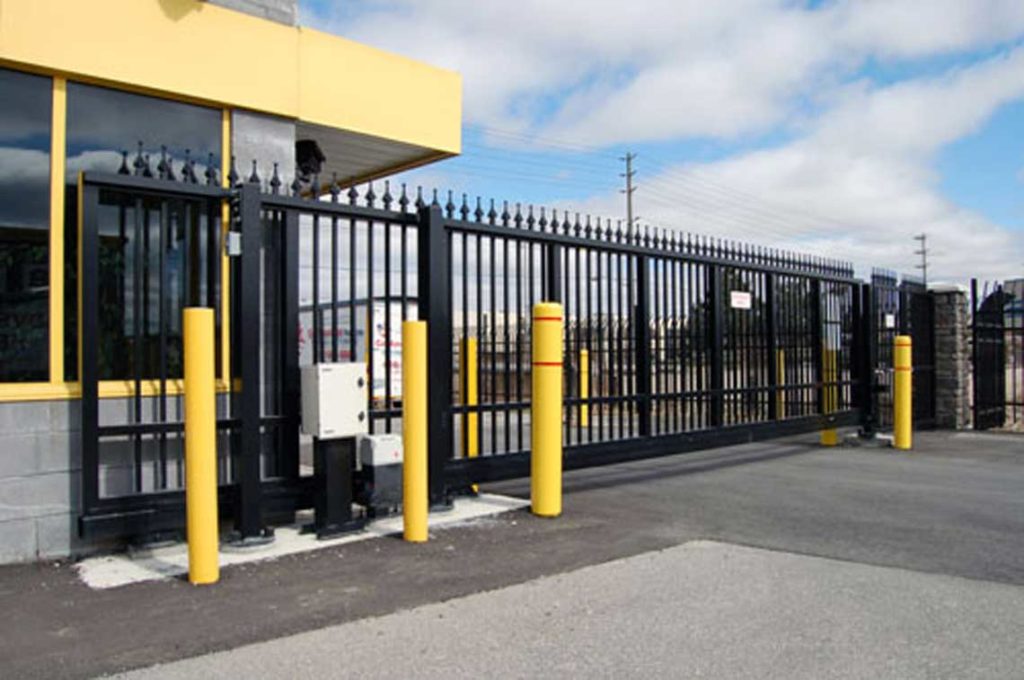

Recent Commercial Work Across Greater Houston
Real Mustang Fencing & Gates commercial installations around the Houston area — designed, fabricated, and installed by our own crews.
The Track Record Behind the Operators
You find out how good a gate installer really was three summers after the check clears. Houston-area owners and property managers have left us 650+ reviews on Google, 250+ on Thumbtack, 150+ on Angi, and 100+ on Facebook — and the Google ones are open for you to read at the source.
Watch: Commercial Gate Automation in Action
Which commercial gate operator brands do you install in Houston?
We install LiftMaster (Elite, CSW, SL-series), HySecurity, DoorKing / DKS, and FAAC, among others. We are brand-agnostic on purpose — the right operator comes from your gate weight, cycle count, and power source, not a single manufacturer relationship — and we install the lines we can source parts for quickly across the Houston area.
How do you size an operator to my site’s traffic?
We size to duty cycle. Under roughly 100 cycles a day is low-duty; 100 to 500 is commercial medium-duty; 500-plus is high or continuous-duty territory. Undersizing is the number-one cause of early operator failure, so we confirm your realistic throughput during the site walk before specifying anything.
Can you install a solar-powered commercial gate operator?
Yes. Where trenching AC power is cost-prohibitive — remote yards, back lots, phased or temporary sites — we install solar arrays with sealed battery banks running DC operators. We size the array and battery to your actual cycle count and to Houston’s cloudy stretches so the gate keeps moving without grid power.
What happens to the gate during a power outage?
We spec battery backup sized to your cycle count, and we set the system fail-safe (opens on power loss) or fail-secure (stays locked) based on your security and life-safety needs. For storm-prone Houston sites, backup runtime is part of the operator conversation up front — not an afterthought.
How do you make an automated gate UL 325 compliant?
Every operator we commission includes layered safety: in-pavement loops, through-beam photo-eyes, a reversing edge where required, correctly configured entrapment-protection zones, tuned force settings, and UL 325 warning signage. We document all of it at commissioning for your insurance and compliance file.
Do you also build the gate and the access control?
Yes — as a single-source, licensed and insured contractor we handle all three under one roof. The gate structure and type selection live on our commercial gate installation page, and keypads, card readers, and telephone entry on commercial access control. Here we focus on the operator and power that move the gate.
Where Our Gate Crews Install
We automate commercial entrances across the Houston metro — business parks, yards, campuses, and gated communities in:
Houston · Stafford · Sugar Land · Missouri City · Pearland · Pasadena · Baytown · Katy · Jersey Village · Cypress · Spring · Humble · Tomball · League City · Richmond · Rosenberg
If your property sits anywhere in Greater Houston, we’ll come size the operator in person.
Get an Automatic Gate That Opens Every Time
Tell us your entrance, your traffic, and how it’s powered. We’ll walk the site, size the operator to your real cycle count, and hand you a clear estimate — no pressure, no obligation. Trusted by Houston-area property owners with 650+ Google reviews.
