Houston Commercial Double Swing Gates
Two leaves, one clean line across your drive. A commercial double swing gate splits your opening into a matched pair that meets in the middle — the classic vehicle barrier for level driveways, office parks, and campus entrances where the gate should look as good as it works. Here is how we spec, fabricate, and hang one that latches true for years.
Ask a Houston property manager to picture a driveway gate and they almost always picture a double swing: two leaves parting from the center to open the lane, then closing back into a single unbroken line. There is a reason it is the default image. Splitting one wide opening into two shorter leaves keeps each half light enough to hang plumb, easy to automate, and handsome enough to front a corporate campus or a gated community — without the long side run a slide gate demands. Mustang Fencing & Gates has fabricated and hung commercial double swing gates across Greater Houston, from Sugar Land office parks to Katy apartment communities, and this page walks you through choosing and building one before anyone quotes a number.
A double swing gate is, at heart, a vehicle barrier that has to move — open and close thousands of times a year and still meet cleanly at the center every time. That is exactly why the pair of hinge posts, the leaf framing, and the center drop rod matter more than the fabric you actually see. Get those right and the gate reads as effortless. Get them wrong and one sagging leaf spoils the whole entrance. Here is how we get them right.
The Case for Two Leaves
A double swing gate is not just a single gate cut in half. Splitting the span changes both the physics and the look of the entrance in ways that matter on a commercial site.
Shorter, Lighter Leaves
Two 10-ft leaves each carry half the reach of one 20-ft gate, so each hangs with far less leverage on its hinge post. Less sag, less strain, and a pair that stays plumb long after a single wide leaf would have dropped.
Balanced Curb Appeal
Two symmetrical leaves meeting at the center give an entrance the classic, welcoming look office parks, campuses, and gated communities want — a face for the property, not just a barrier across it.
Less Side Room Needed
Unlike a slide or cantilever gate that needs a long clear run beside the opening, a swing pair only needs arc room in front or behind. On tight commercial frontages, that is often the deciding factor.
Automation-Friendly
Lighter, balanced leaves are easier and cheaper to power. A pair of swing operators moves a double gate smoothly and the shared load is gentle on the motors — so an automated entry lasts.
Double Swing vs. Your Other Gate Options
A double swing gate is the right answer for a lot of commercial entries — but not every one. The table below shows where a double swing wins and where another configuration fits better, using relative install-cost tiers rather than fixed prices.
| Configuration | Relative Cost | Best Entry | Choose It When |
|---|---|---|---|
| Double Swing (bi-parting) | $$ | Level drives up to ~24 ft, office & campus frontage | You want curb appeal, limited side room, and easy automation. |
| Single Swing | $ | Narrow openings under ~12 ft | The opening is small and one leaf can span it without sagging. |
| Roller-Slide | $$ | Wide openings on firm, level ground | You have long side room and firm, drainable ground for a track. |
| Cantilever Slide | $$$ | Poor grade, debris, high cycle counts | The ground floods or slopes and you can spare ~1.5× the opening in backdrop. |
These tiers are an estimate to help you scope — not a quote. Every gate is priced on your real opening width, height, fabric, and hardware after we walk the site.
Where We Hang Double Swing Gates
We fabricate every pair in our Stafford shop and set them at office parks, campuses, and gated communities across Greater Houston. Our crews regularly hang commercial double swing gates in:
Sugar Land · Houston · Missouri City · Stafford · Richmond · Fulshear · Katy · Bellaire · Pearland · Friendswood · Cypress · Jersey Village · Tomball · Spring · Humble
If your entrance sits anywhere in the greater Houston area, we can walk it — usually within days, not weeks.
Anatomy of a Commercial Double Swing Gate
The parts you notice least are the ones that decide whether a double swing gate lasts. Here is what a proper commercial pair is built from.
Matched Hinge Posts
Two heavy posts set deep in concrete carry the entire load. We size and set them for the leaf weight, wind, and expansive clay so neither leaf ever sags or heaves out of line.
Welded, Balanced Leaves
Each leaf is welded from structural steel or heavy aluminum to match its twin, then galvanized and powder-coated for Gulf Coast humidity — so the pair opens evenly and finishes the same.
Center Drop Rod & Latch
Where the leaves meet, a drop rod pins the inactive leaf to the ground and a keeper latches the active one — the detail that lets a two-piece gate hold like one solid barrier.
Duty-Rated Hinges & Stops
Ball-bearing or bolt-on hinges matched to the leaf, plus positive gate stops, keep both halves swinging true and landing in the same spot on cycle one and cycle ten thousand.
In-Swing or Out-Swing?
Which way the leaves open is not a style choice — the site decides it. In-swing gates open onto your property and keep the leaves off the public right-of-way, which many jurisdictions and fire access rules prefer; they need clear arc room just inside the entrance. Out-swing gates open toward the street and suit sites where the drive drops away or parking sits close behind the gate — but the leaves must never sweep into a sidewalk or travel lane. We read the grade, the setback, and the swept path of your largest vehicle, then recommend the direction that stays clear and code-friendly, and we frame the posts so the choice is made once, correctly.
Not sure a double swing is right for your entrance — or which way it should open? We’ll walk it with you and put the recommendation in writing.
What Moves the Price of a Double Swing Gate
The bars below show how the pieces of a double swing gate generally stack up against one another in the Houston market. They are relative estimates to help you budget — not a quote. Your real number depends on your opening, fabric, height, and whether you automate.
The Property Managers Who Sent Us Their Drives
Before a double swing gate ever fronts your property, it is worth reading what other Houston owners and facility managers say about the crew building it. Mustang Fencing & Gates has earned 650+ reviews on Google, 250+ on Thumbtack, 150+ on Angi, and 100+ on Facebook — real entrances, real gates, real neighbors across Greater Houston.
From Site Walk to Final Latch
Every Mustang double swing gate follows the same clear path — no surprises between the handshake and the day it swings.
- Walk the entry. We measure the opening, read the grade, and check the swing arc so we know each leaf clears cars, curbs, and columns before we design anything.
- Spec the pair in writing. Leaf sizes, fabric, hinge-post schedule, center hardware, and in- or out-swing — line-itemed so procurement can compare bids apples to apples.
- Fabricate in our Stafford shop. Both leaves are welded to match, galvanized, and powder-coated before install day, so the crew arrives with a finished pair, not a kit of parts.
- Set posts & hang plumb. Matched hinge posts are set deep in concrete for the leaf weight and Houston’s clay, then each leaf is hung and adjusted to meet dead-center.
- Cycle it with you. We swing both leaves through full travel, set the drop rod, latch, and stops, and hand over the entry only when it closes clean every single time.
Automation-Ready From Day One
Most commercial double swing gates end up automated, and the two-leaf design makes it easy — a pair of swing operators moves the balanced leaves smoothly, with far less strain than powering one wide gate. This page covers the passive gate itself; when you are ready to power it, we size dual-swing operators, safety loops, and photo-eyes on our commercial automatic gates service, and we stage conduit during the build so nothing gets torn out later. Keypads, card readers, and telephone entry are coordinated through our commercial access control service, and the gate ties into the wider commercial fencing line that secures the rest of your perimeter. Install a manual pair now and automate later — we frame the posts so the operators drop in without a rebuild.

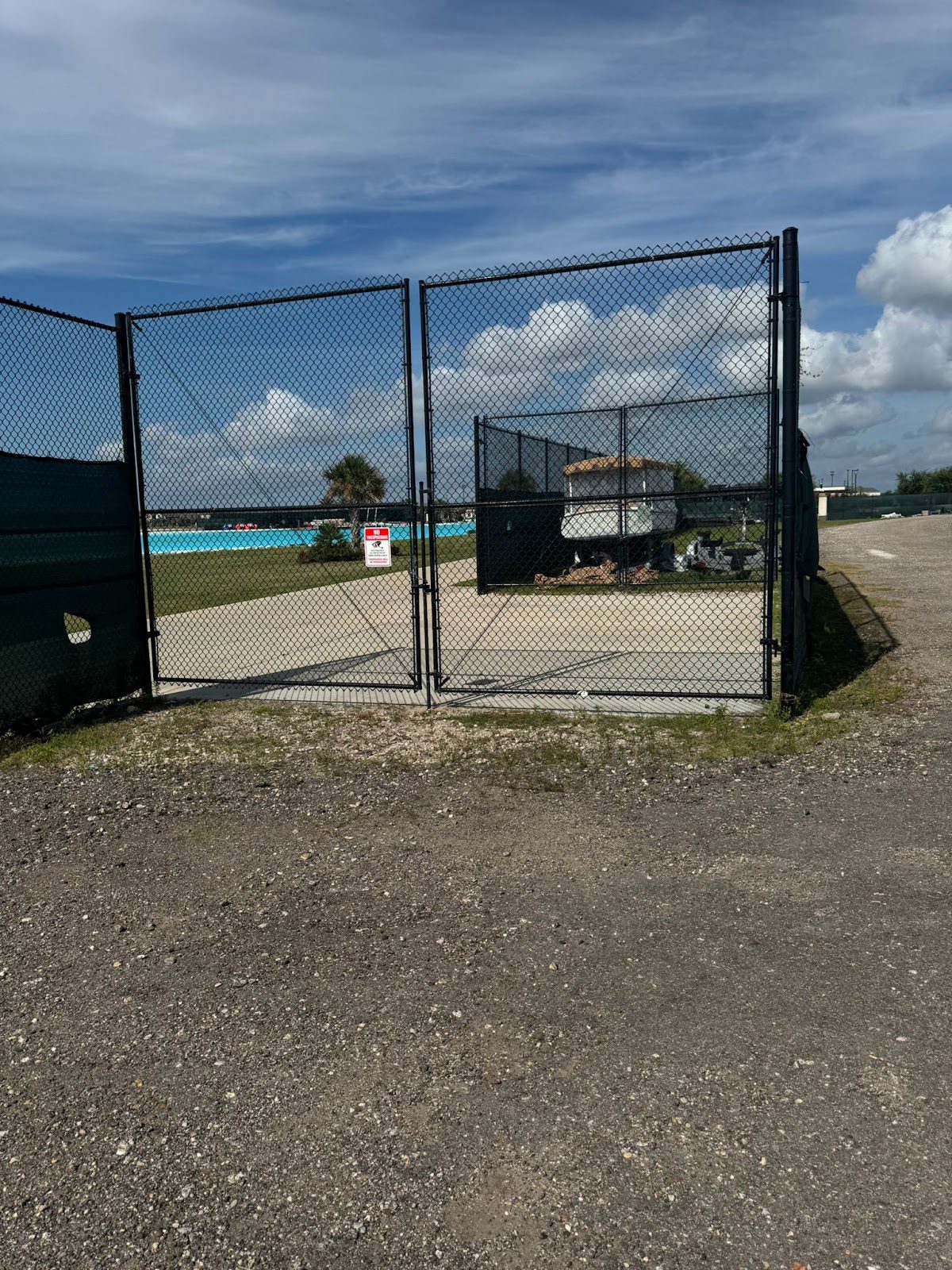

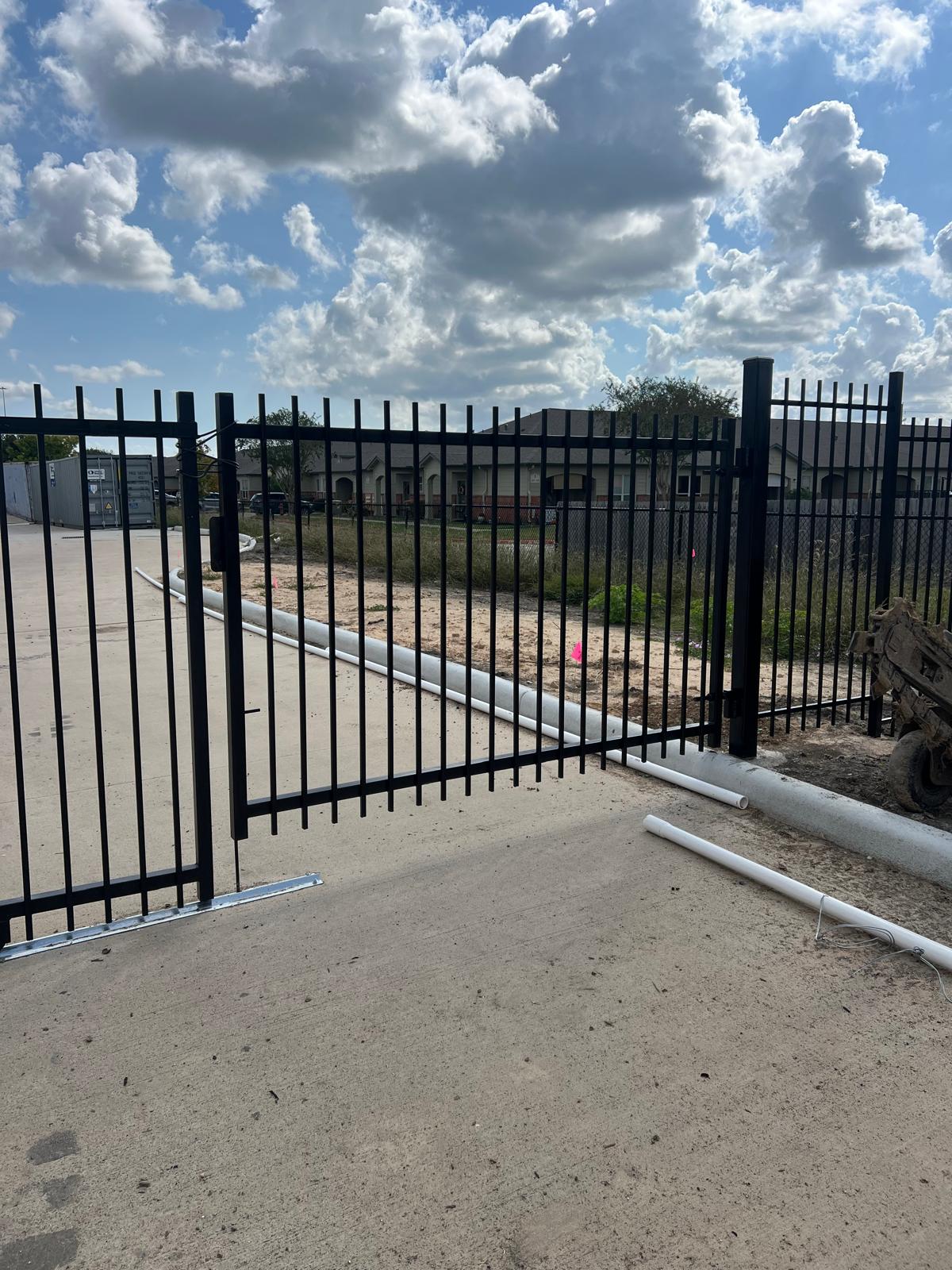

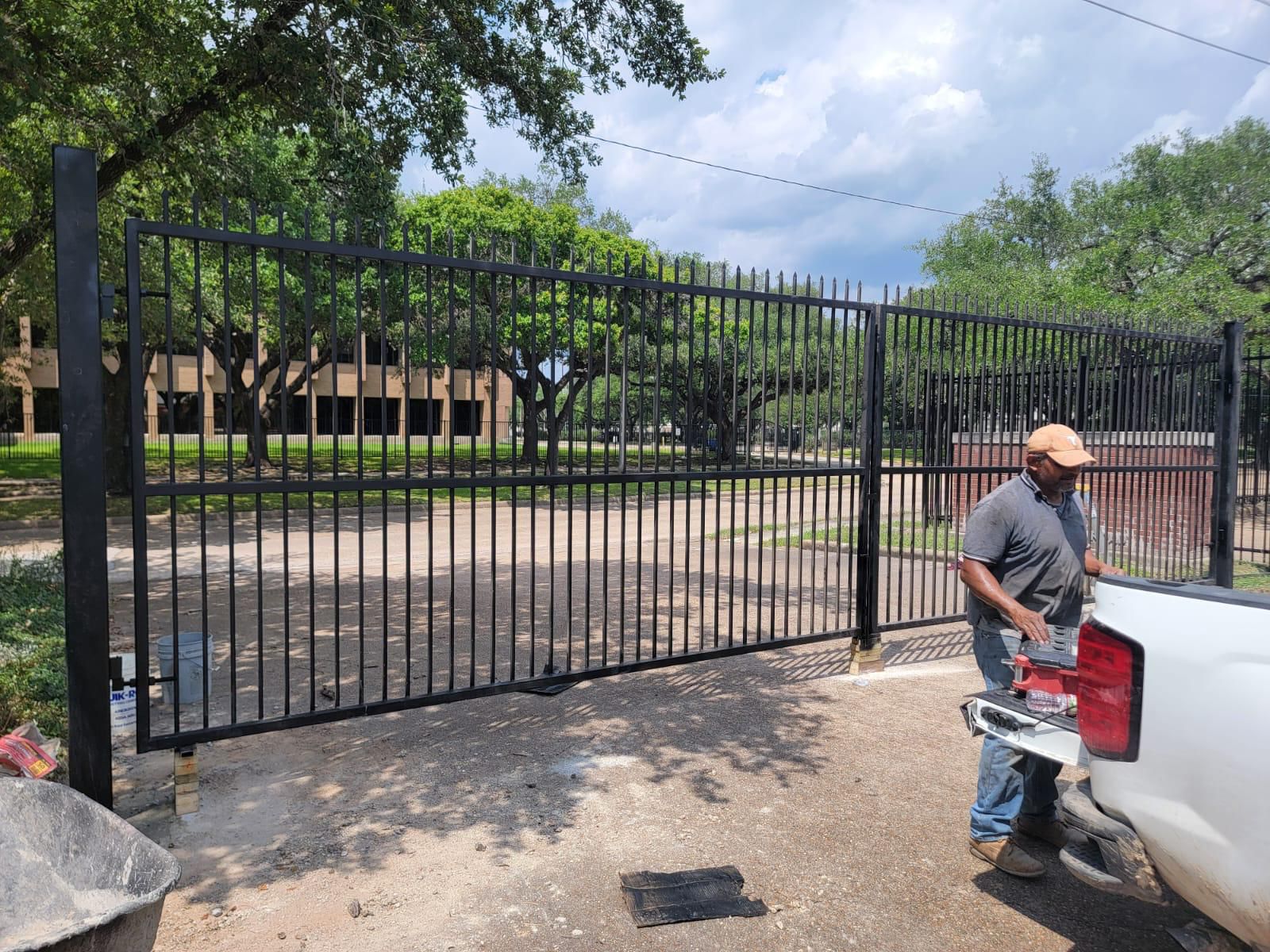

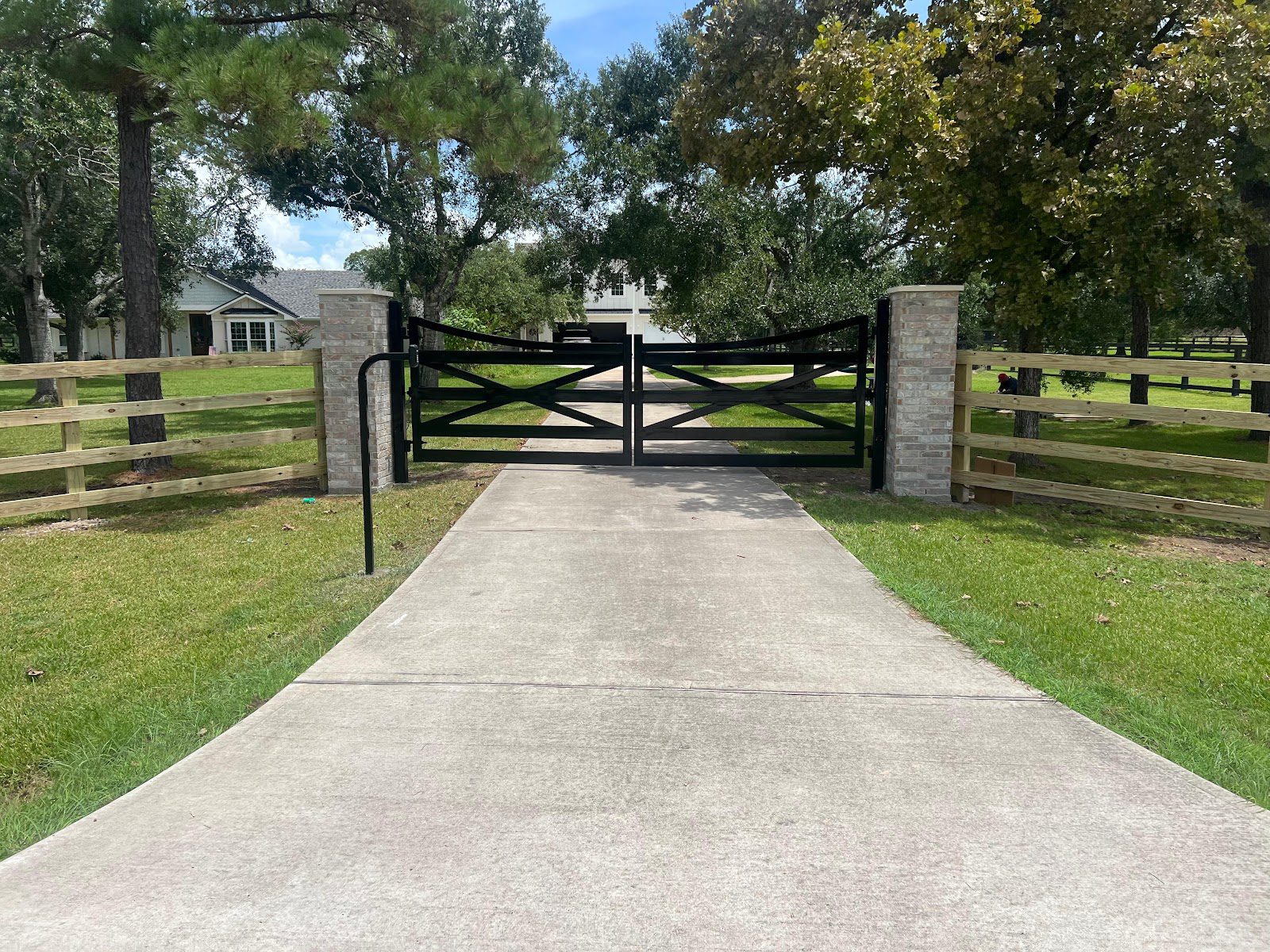

Recent Commercial Work Across Greater Houston
Real Mustang Fencing & Gates commercial installations around the Houston area — designed, fabricated, and installed by our own crews.
Watch: Commercial Double Swing Gate Projects in Houston
What is a commercial double swing gate, and when is it the right choice?
It is a bi-parting vehicle gate: two leaves hinged on opposite posts that swing open from the center and close into one continuous line. It is the right choice for level driveways up to roughly 24 feet where you want curb appeal, do not have long side room for a slide gate, and may want to automate. On very narrow openings a single swing is simpler, and on wide, debris-prone, or sloped ground a cantilever slide usually wins.
How wide an opening can a double swing gate cover?
Splitting the span between two leaves lets a double swing comfortably cover openings a single gate could not — commonly up to about 24 feet, with each leaf around 10 to 12 feet. Beyond that, leaf weight and wind load grow quickly, and we may recommend a cantilever slide instead. We confirm the right split after measuring your opening and the swept path of your largest vehicle.
Should my gate swing in or out?
The site decides. In-swing keeps the leaves on your property and off the public right-of-way, which many jurisdictions and fire access rules prefer, but it needs clear arc room inside the entrance. Out-swing suits sites where the drive drops away or parking sits close behind the gate, as long as the leaves never sweep into a sidewalk or lane. We read grade, setback, and clearance on site and recommend the direction that stays clear and code-friendly.
How do two leaves stay aligned and secure at the center?
A center drop rod pins the inactive leaf into a ground sleeve so it cannot move, and a keeper latches the active leaf against it — together they make the pair hold like one solid barrier. Positive gate stops and duty-rated hinges keep both leaves landing in the same spot every cycle, so the center meets clean instead of drifting out of line over time.
Can you automate a commercial double swing gate?
Yes, and the balanced two-leaf design makes it straightforward. A pair of swing operators powers the leaves, with safety loops and photo-eyes for vehicles and pedestrians. We handle sizing and installation through our commercial automatic gates and access control services, and if you are phasing the project we frame and position the posts so a manual gate today accepts operators later with no rebuild.
How do you keep a swing gate from sagging in Houston’s clay soil?
Two ways: shorter leaves and deeper posts. Splitting the opening halves the leverage on each hinge post, and we set matched hinge posts deep in concrete sized for the leaf weight, wind load, and our expansive gumbo clay that swells and shrinks with the weather. Welded, properly braced leaves and duty-rated hinges finish the job, so the pair stays plumb and meets true for years.
